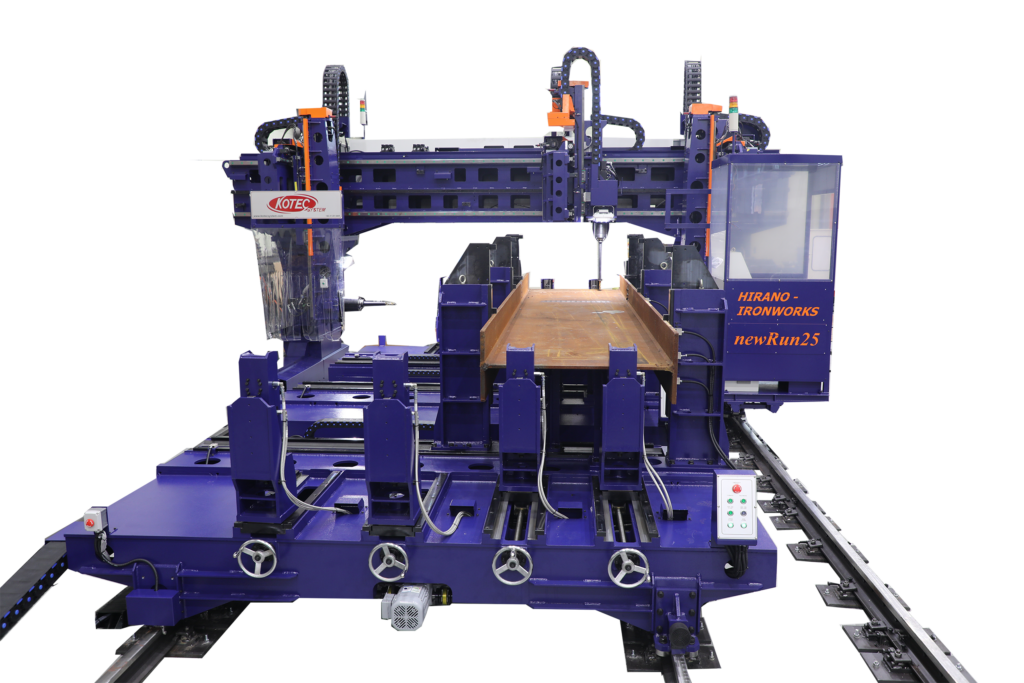

GANTRY TYPE MULTI BEAM DRILLING MACHINE
GANTRY TYPE MULTI BEAM DRILLING MACHINE
newRun 25
Features
-
Maximum working range: 2,500×1,200mm.
-
Fast hole drilling enabled by the use of carbide drills.
-
X-axis drill movement system (beam length direction).
-
Simple machining data input method applied.
-
Simultaneous loading of two materials allows continuous hole drilling.
Request a Quote
Specifications
| MODEL | newRun 13S |
|---|---|
| Processing capacity | |
| Size | 600×200 – 2,500×1,200mm |
| Length | 2,500 – 16,000mm |
| Thickness | 9 – 70mm (WEB, FL) |
| Drill | Ø12 – Ø40 |
| Machine Structure | Gantry traveling (24,000mm) |
| Drill Spindle Motor | Built-in spindle motor (BT-50) |
| Dimension (W×L×H) | 6,750×3,000×3,785mm |
| Weight | 14,000kg |
NOTE: Specifications are subject to change for quality improvement.
